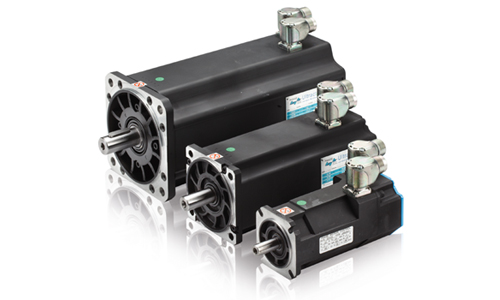

High dynamic natural cooled servomotors S1 torque from 2Nm up to 730Nm

DETAILS

A (Natural Cooling) Size	Models	Flange [mm]	Ext. Shaft Ø x L [mm]	Total Length [mm]	Nominal Speed [rpm]	Nominal Torque [Nm]	Rated Current [A]	Datasheet
U303	1	75	14 x 30	141	3000	0,94	0,67	PDF
	2	75	14 x 30	167	3000	1,7	2,1
	3	75	14 x 30	223	3000	2,7	1,68
U305	03	100	19 x 40	195	3000	3,1	2,3	PDF
	06	100	19 x 40	239	3000	6	4,3
	09	100	19 x 40	283	3000	8,6	6
	12	100	19 x 40 (*)	327	3000	11,4	7,8
U307	10	145	24 x 50	208	3000	8,5	5,2	PDF
	20	145	24 x 50	257	3000	11	6,7
	30	145	24 x 50	307	3000	18	13,3
	40	145	24 x 50	358	3000	26	17,9
U310	04	200	42 x 82	255	3000	27	18	PDF
	07	200	42 x 82	327	3000	30	22
	10	200	42 x 82	399	3000	32	20
	13	200	42 x 82	471	3000	45	28
U313	10	264	48 x 112	332	2000	87	35	PDF
	20	264	48 x 112	439	2000	100	47
	30	264	48 x 112	546	2000	180	70
	40	264	48 x 112	653	2000	130	61
U318	35	360	50 x 110	515	2000	n.a. ¹	n.a. ¹	PDF
	70	360	50 x 110	707	2000	n.a. ¹	n.a. ¹
	100	360	50 x 110	835	2000	n.a. ¹	n.a. ¹

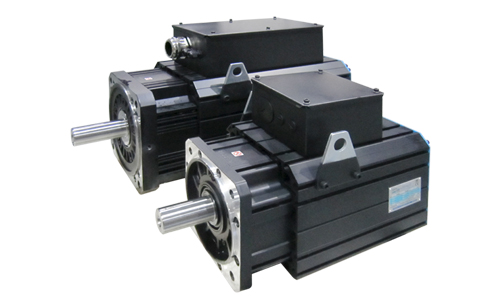

High dynamic fan cooled servomotors S1 torque from 25Nm up to 1

DETAILS

F (Fan Cooling) Size	Models	Flange [mm]	Ext. Shaft Ø x L [mm]	Total Length [mm]	Nominal Speed [rpm]	Nominal Torque [Nm]	Rated Current [A]	Datasheet
U310	04F	200	42 x 82	338,5	3000	38	25	PDF
	07F	200	42 x 82	410,5	3000	70	51
	10F	200	42 x 82	482,5	3000	95	59
	13F	200	42 x 82	554,5	3000	135	82
U313	10F	264	48 x 112	460	3000	130	82	PDF
	20F	264	48 x 112	567	3000	240	156
	30F	264	48 x 112	674	3000	350	228
	40F	264	48 x 112	781	3000 ²	460	299
U318	35F	360	60 x 140(*)	700	2000	420	148	PDF
	70F	360	60 x 140(*)	892	2000	790	278
	100F	360	60 x 140(*)	1020	2000	900	357

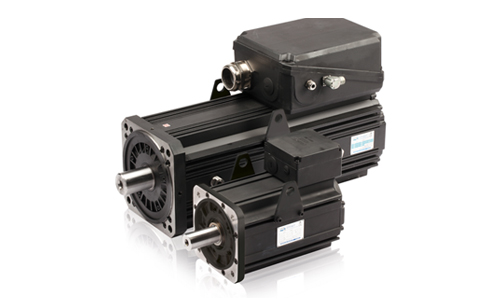

High dynamic water cooled servomotors S1 torque from 35Nm up to 1600Nm

DETAILS

C (Water Cooling) Size	Models	Flange [mm]	Ext. Shaft Ø x L [mm]	Total Length [mm]	Nominal Speed [rpm]	Nominal Torque [Nm]	Rated Current [A]	Datasheet
U307	20C	145	28x 60	257	3000	30	21	PDF
	30C	145	28x 60	307	3000	50	31
	40C	145	28x 60	358	3000	70	48
U310	04C	200	42 x 82	255	3000	53	34	PDF
	07C	200	42 x 82	327	3000	108	76
	10C	200	42 x 82	399	3000	160	109
	13C	200	42 x 82	471	3000	217	156
U313	10C	264	48 x 112	332(*)	3000	175	100	PDF
	20C	264	48 x 112	439(*)	3000	348	205
	30C	264	48 x 112	546(*)	3000	520	306
	40C	264	48 x 112	653(*)	3000	700	412
U318	35C	360	60 x 140	515	2000	497	157	PDF
	70C	360	60 x 140	707	2000	980	345
	100C	360	60 x 140	835	2000	1480	588
