Machine Vision

iVIS-200 Series

- Intel® Atom™ E3845 quad-core 1.91 GHz processing power

- Built-in GigE/USB3/USB2 camera interfaces

- Patent-pending DTIO technology for accurate trigger/strobe control

- Built-in 500 mA constant current and 24 V constant voltage LED controller

- 802.3at PoE+ PD and auxiliary DC dual power input

- M12 connectors for water-proof design

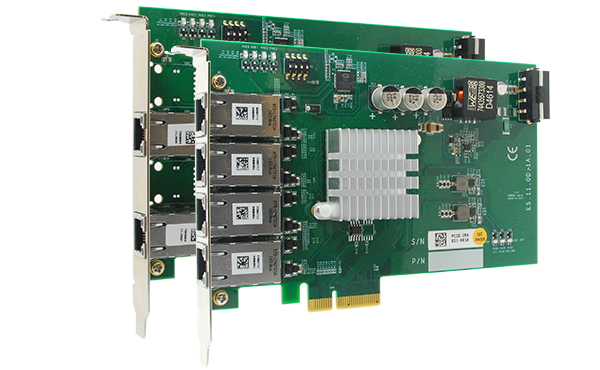

- x4, Gen2 PCI Express interface offering 2GB/s total bandwidth

- Intel® I350 server-grade Gigabit Ethernet controller

- Supports four (354at) or two (352at) independent GigE Ports

- Compliant with IEEE 802.3at to deliver 25.5 W each port

- Supports 9.5 kB jumbo frame, teaming and IEEE 1588

- Per-port PoE+ power on/off control

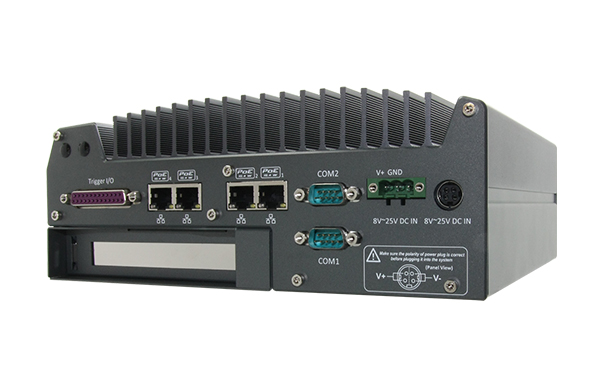

- Intel® 3rd-Gen i7 Quad-core superb performance

- Integrated camera interfaces

- 4x 802.3af Gigabit PoE ports via Intel®I210

- 4x USB 3.0 ports

- Patent-pending Deterministic Trigger I/O technology for accurate trigger/strobe control

- Patent Cassette* design for PCIe/PCI add-on card expansion

- Per-port PoE power on/off control

- Rugged, -25°C to 70°C fanless operation

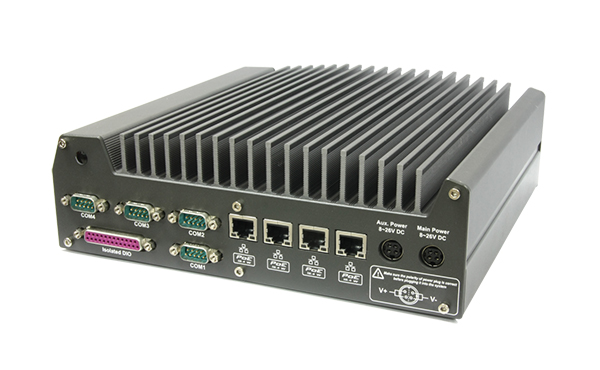

- Intel® i7 superb computing performance

- Integrated four GigE PoE ports and one GigE port by Intel® 82574L controller

- Rugged, -25°C to 70°C fanless operation

- Isolated/non-isolated PoE power design

- Integrated 8-CH isolated DI and 8-CH isolated DO

- One RS-232/422/485 port and three RS-232 ports

- Dual SATA ports to accommodate two 2.5” SATA hard drives


- Ultra-compact 150 mm x 100 mm foot-print

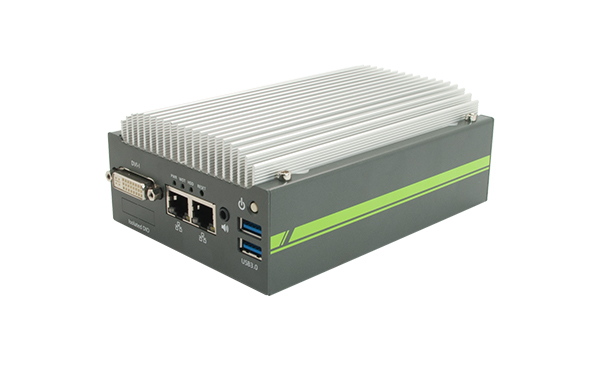

- Intel® Atom™ E3845 1.91GHz Quad-core processor

- Rugged, -25°C to 70°C fanless operation

- Two 802.3at (25.5W) Gigabit PoE ports

- Three USB 3.0 ports

- Standard 2.5" SATA HDD/SSD accommodation and optional on-board eMMC

- Up to two RS-232/422/485 ports and two RS-232 ports


- x4 PCI Express® interface to support a total bandwidth of 1GB/s

- No external 12 VDC input needed for PCIe-PoE2+

- Compliant with IEEE 802.3af to deliver 15.4 W each port

- Supports 9 kB jumbo frame and link aggregation

- Supports four (PoE4+) or two (PoE2+) independent GigE Ports

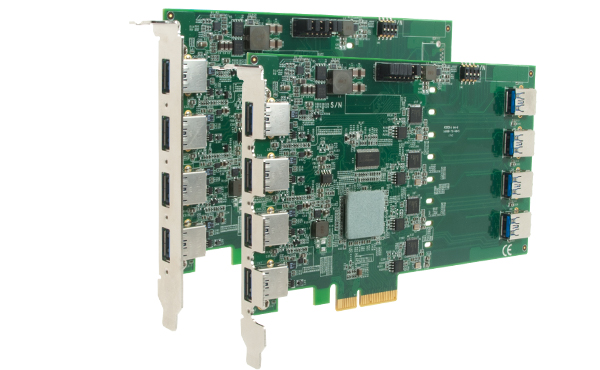

- x4 PCI Express® Gen2 interface to deliver 2GB/s bandwidth

- 8x USB 3.0 ports by 4x independent NEC/Renesas μPD720202 Host Controllers

- On-board 5VDC regulated power supply

- User-configurable 900mA and 1500mA current limit

- Software-programmable per-port power on/off control

- Supports cable-lock mechanism for reliable cable connection

- Supports Windows XP/7/8 and Linux

- Compliant with USB 3.0 specification Rev. 1.0 and Intel® xHCI specification Rev. 1.0
