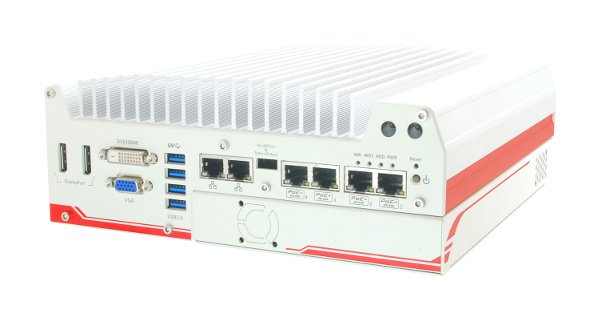

Nuvo-5002LP/5006LP

- Intel® 6th Gen Core™ i7/i5/i3 LGA1151 socket-type CPU

- MezIO™ interface for easy function expansion

- Rugged, -25°C to 70°C fanless operation

- Up to 6x GigE ports, supporting 9.5 KB jumbo frame

- Up to 32 GB, DDR4-2133 SODIMM

- One hot-swappable 2.5" HDD/SSD and one fixed 2.5" HDD/SSD, supporting RAID 0/1

- VGA/DVI/DP triple independent display, supporting 4K2K resolution

- 77 mm low-profile design


Nuvo-5000E/P

- Intel® 6th Gen Core™ i7/i5/i3 LGA1151 socket-type CPU

- Patented Cassette for PCI/PCIe add-on card accommodation

- MezIO™ interface for easy function expansion

- Rugged, -25°C to 70°C fanless operation

- Up to 6x GigE ports, supporting 9.5 KB jumbo frame

- Up to 32 GB, DDR4-2133 SODIMM

- Accommodates two 2.5" SATA HDD/SSD with RAID 0/1 support

- VGA/DVI/DP triple independent display, supporting 4K2K resolution

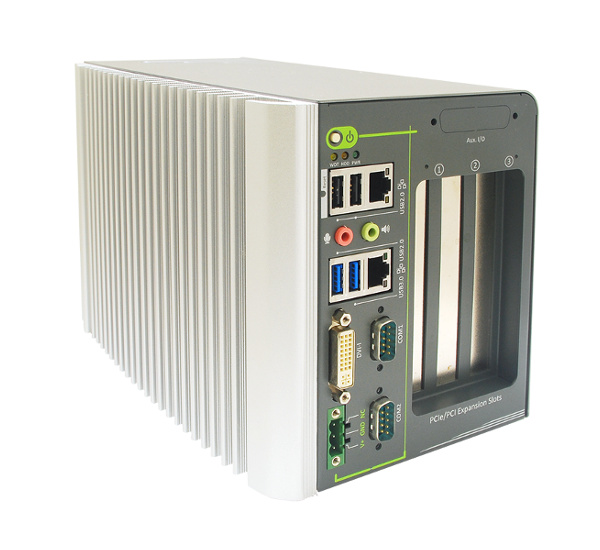

Nuvo-2400

- Intel® Celeron® Bay Trail J1900 quad-core processor

- 3x PCI slots or 1x PCIe x4 + 2x PCI slots

- Rugged, -25°C to 70°C fanless operation

- Dual independent display via DVI-I connector

- 2x SATA ports for 2.5" HDD/SSD

- 2x RS-232/422/485 + 2x RS-232

- Optional isolated 8-ch DI and 8-ch DO

- 8 to 25 VDC wide-range DC input


Nuvo-2500

- Intel® Celeron® Bay Trail J1900 quad-core processor

- 1x PCI/PCIe expansion with compact size

- Dual storage with 1x mSATA and 1x SATA

- Dual independent display via VGA and DVI connectors

- Optional Auxiliary I/O for PWM and Encoder signals

- 2x RS-232/422/485 and 2x RS-232

- 8 to 35VDC wide-range DC input

- Operating temperature from -25° to 70°C


POC-120

- Low-profile, Ultra-compact 15cm x 10cm x 3.4cm footprint

- Intel® Atom™ E3826 1.46GHz dual-core processor

- Rugged, -25°C to 70°C fanless operation

- Two GigE ports and three USB ports

- One RS-232/422/485 port and one RS-232 port

- I/O expansion interface for ODM projects

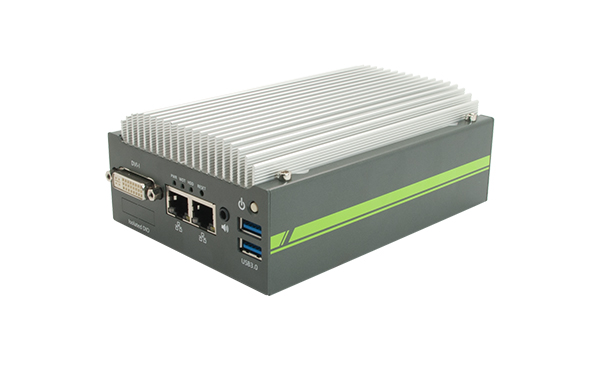

Nuvo-3120

- 212 mm x 165 mm x 62 mm very compact size

- Intel® 3rd-Gen i7/i5 PGA-type processor

- User-configurable CPU power mode for adaptation to various environments

- Dual GbE ports and four USB3 ports

- DVI/VGA + DisplayPort triple independent display outputs

- Built-in isolated digital I/O with change-of-state (COS) interrupt

- 8~35V wide-range DC input


POC-200

- Ultra-compact 150 mm x 100 mm foot-print

- Intel® Atom™ E3845 1.91GHz Quad-core processor

- Rugged, -25°C to 70°C fanless operation

- Two 802.3at (25.5W) Gigabit PoE ports

- Three USB 3.0 ports

- Standard 2.5" SATA HDD/SSD accommodation

- Up to two RS-232/422/485 ports and two RS-232 ports

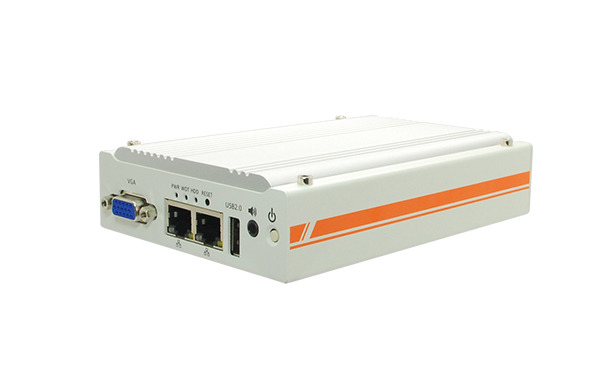

POC-100

- Ultra-compact in 15 cm x 10 cm dimension

- Intel® Atom™ D525 1.8GHz Dual-core processor

- Rugged, -20 °C to 60 °C fanless operation

- On-board soldered 2GB DDR3 memory

- Dual Gigabit Ethernet ports

- mSATA and 2.5" SATA HDD dual storage devices

- Up to two RS-232/422/485 ports and two RS-232 ports

- Versatile mounting design

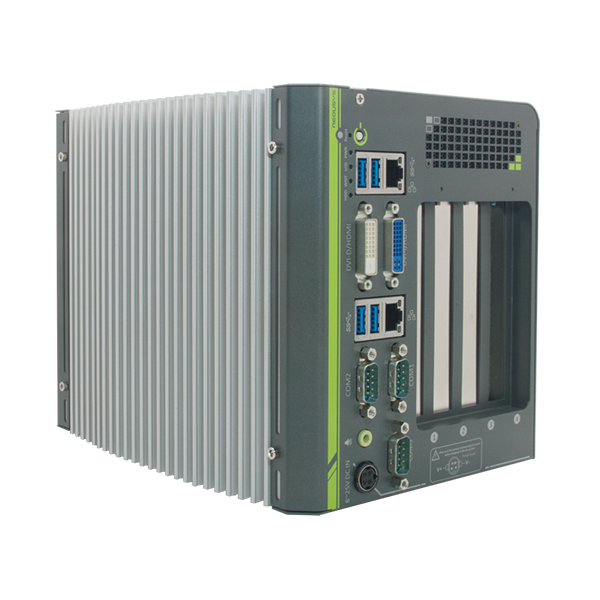

Nuvo-4000

- Intel® 3rd-Gen i7 Quad-core superb performance

- Four PCIe/PCI slots expansion capacity

- 16.4 cm x 17.8 cm x 22.5 cm small foot-print

- Rugged, -25 °C to 60 °C fanless operation

- DVI+DVI+VGA triple independent display outputs

- One CFast socket and two SATA ports

- Smart-fan option and on-board isolated DIO option available

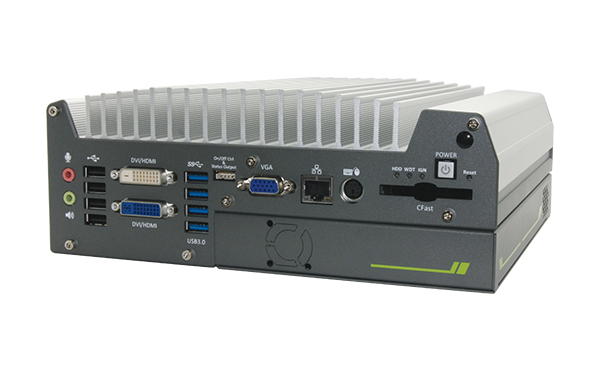

Nuvo-3000E/P

- Intel® 3rd-Gen i7 Quad-core superb performance

- Patent Cassette* design for PCIe/PCI add-on card expansion

- Integrated 5x GigE ports, supporting 9.5 KB jumbo frame

- Rugged, -25 °C to 70 °C fanless operation

- Optional Intelligent ignition power control for vehicle application

- VGA/DVI/HDMI multiple display outputs

- 4x USB 3.0 ports + 4x USB 2.0 ports

- Optional isolated DIO with Change-of-State interrupt support


Nuvo-3000LP

- Intel® 3rd-Gen i7 Quad-core superb performance

- 240 mm x 225 mm x 69 mm low-profile chassis

- One easy-swappable 2.5" HDD and one fixed 2.5" HDD

- Up to 5x GigE ports, supporting 9.5 KB jumbo frame

- Rugged, -25°C to 70°C fanless operation

- Option of PoE capability

- Option of isolated DIO with COS interrupt support


Nuvo-3000TB

- Intel® 3rd-Gen i7 Quad-core superb performance

- Integrated 3x /5x GigE ports, supporting 9.5 KB jumbo frame

- Rugged, -25 °C to 70 °C fanless operation

- Supports 1x 2.5" and 1x 3.5" HDD

- Option of Intelligent ignition power control for vehicle applications

- Option of isolated DIO with Change-of-State interrupt support

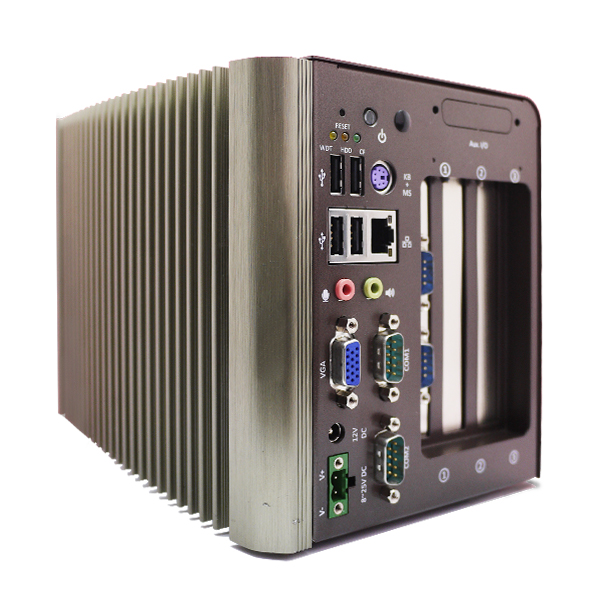

Nuvo-2000+

- Intel® Atom™ D525 1.8GHz dual-core processor

- Rugged, -20°C to 70°C fanless operation

- Three PCI slots or one x4 PCIe + two PCI slots

- Dual VGA and dual GbE ports

- Two SATA ports to accommodate two 2.5" HDD

- One RS-232/422/485 port and three RS-232 ports

- On-board isolated DIO option

- Wide range 8~25V DC input


Nuvo-1000

- Rugged, -25°C to 70°C fanless operation

- Up to five Intel® 82574L Gigabit Ethernet ports

- VGA+DVI/HDMI dual display

- One RS-232/422/485 port and three RS-232 ports

- Dual eSATA ports

- Mini-PCIe expansion with USIM support

- Optional on-board isolated DIO

- Optional PCI-104 expansion bus
